Automatic Corrugated Roof Sheet Making Machine
Automatic Corrugated Roof Sheet Making Machine
Automatic Corrugated Roof Sheet Making Machine
Automatic Corrugated Roof Sheet Making Machine
Automatic Corrugated Roof Sheet Making Machine

Automatic Corrugated Roof Sheet Making Machine

Unit Price: USD 19500 - 6500 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union,OA
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: Zt-009

Additional Info

    Packaging: One 40GP

    Productivity: 25m/min

    Brand: Zhongtuo

    Transportation: Ocean,Land

    Place of Origin: Hebei

    Supply Ability: 30sets/month

    Certificate: CE/ISO9001

Product Description

Automatic Color Steel Corrugated Roof Sheet Making MachinE

Machine Description

Qty

Delivery time

Container Type

Price

(FOB TIANJIN)

Automatic Color Steel Corrugated Roof Sheet Making Machine

1 SET

45 working days

after receiving deposit

One 20GP

Depend on the final products


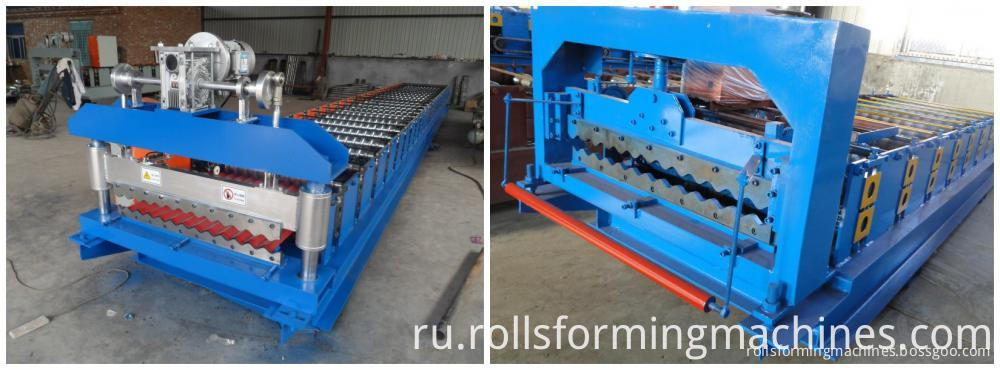

Corrugated board roll forming machine (19)


Components of production line

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 1.2mm

Material width:1220mm/1200/1000/1250

Forming speed: 8-25m/min

Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Double Layer Machine For Color Steel Profile

Drawing of tile

corrugated sheet roll forming machine



Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working



Feature : Ensure stability , precision and lifetime.

Corrugated Roof Sheet Making Machine

No.

Main parameter

1

Length of the main part

About8500*1650*1500mm

2

Weight of main part

About 5.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

14

Main power

5.5kw




Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

Corrugated Roof Sheet Making Machine

Cutting device

Corrugated Roof Sheet Making Machine

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic


Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1220mm

450-550mm

Corrugated Roof Sheet Making Machine


Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Products receiving tables

1. It adopts welded steel and supported roller to transmit the products.

2. 3*0.9*0.6m

Corrugated Roof Sheet Making Machine

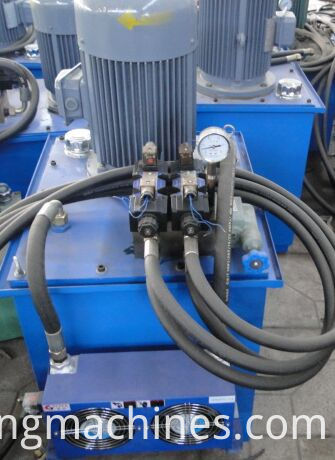

Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Orgin

Power

Advanced hydraulic system from Taiwan

3kw

Corrugated Roof Sheet Making Machine

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs


Controlling device

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan

Corrugated Roof Sheet Making Machine

Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

within 45 working days after receipt of deposit.

Packing

Nude packing with 1*20 container

Warranty

One year, and we will provide the technical support for the whole life.

Installation

1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)


Company Information

Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has

its own factory and also cooperate with several production factories and associated nterprises, concerning

with the design, development and production of cold roll forming machines,material of building. It is located

in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products

comply with international quality standards and are greatlyappreciated in variety of different markets

throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.

FAQ

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick

up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then

we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts repla

ce the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can throug

h negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipme

nt.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various

types of cold roll forming machines.

6. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on develo

ping How to make machines much more automatic, accurate and high quality. We can make sure thatour m

achine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

7. How long the machine could be made?

Normally speaking, Welded Pipe Making Machine could be made without 45 working days. If you need

machines in a hurry, we can make it for you less than a month.
