840 roof machine,roof making machine,zinc roof machine
Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

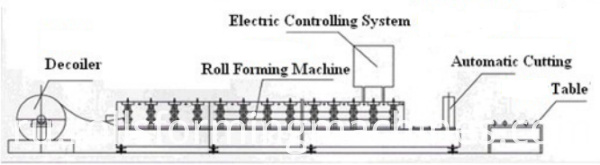

840 roof machine,roof making machine,zinc roof machine Uncoiler System: Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system Loading capacity:5T Uncoiling width:1500mm Inner diameter: 450-550mm

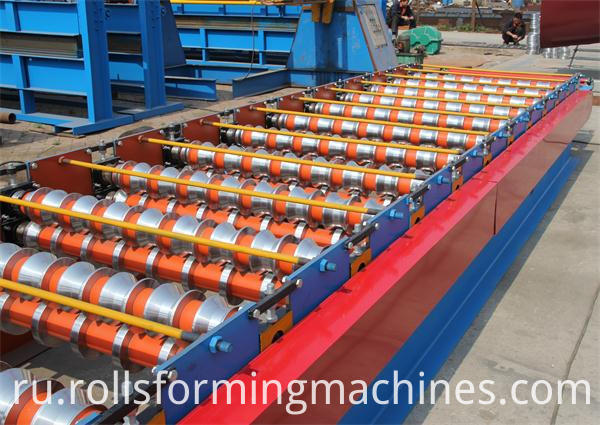

840 roof machine,roof making machine,zinc roof machine Main Roll Forming System: Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Length of the main part: about 6500х1450х1500 Weight of main part: 3.8 tons Voltage : 480V/60HZ/3-Phase Roller fixer : middle plate Frame : 350 H steel welded Drive mode: chain Material of rollers:45# steel, surface hard chromium plating. Material of shafts: 45# steel Diameter of shafts: φ80mm Number of rollers : 13 rollers Main power:5.5kw

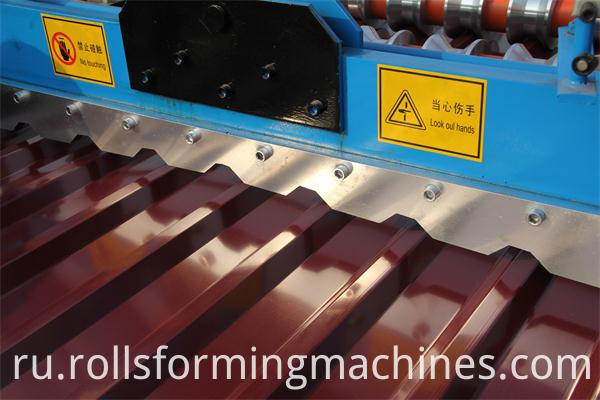

840 roof machine,roof making machine,zinc roof machine Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.
840 roof machine,roof making machine,zinc roof machine Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

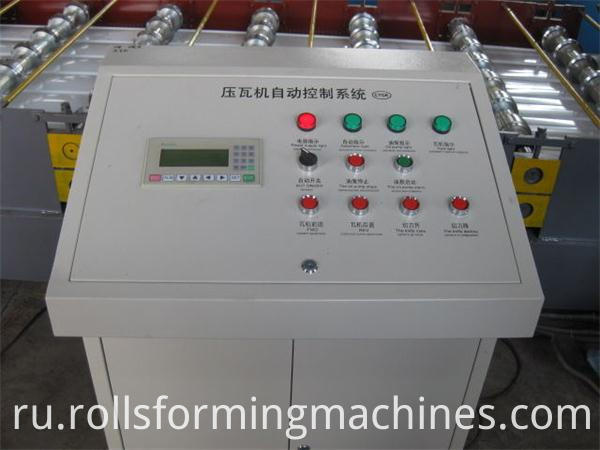

840 roof machine,roof making machine,zinc roof machine Electric Control System:
1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Panasonic.
840 roof machine,roof making machine,zinc roof machine Our Service:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
840 roof machine,roof making machine,zinc roof machine Company Information:
Cangzhou zhongtuo cold roll forming manufactury co., ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
