Zhongtuo Roll Forming Machinery Co., ltd

Storage racks roll forming machine
Storage racks roll forming machine
Storage racks roll forming machine
Storage racks roll forming machine
Storage racks roll forming machine

Storage racks roll forming machine

Payment Type: L/C,T/T,D/P,Western Union,O/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: CNZT002

    Type: Cold Bending Equal Channel

    Shape: C Channel

    Perforated: Perforated

    Length: 6-19m

    Drive Mode: Gear Box

    Speed: 15m/min

    Matching Material: G.I Or M.S

    Main Motor Power: 15kw

    Hydraulic Station Power: 7kw

    Quantity Of Stands: About 16

    Controlling System: PLC

    Total Weight: 8 Tons

    Voltage: Customize

    Material Thickness Range: 0.8mm

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 5 set

    Brand: ZHONGTUO

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE\ISO9001

Product Description

Storage racks Roll Forming Machine

Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings.

Storage racks roll forming machine is adopted for manual access of lighter goods supporter. It can be matched with plastic containers stored more varieties of products, widely used in electronic industry and small parts warehouse, laying special rubber plate anti-static function by changing the spray or powder. It

has the characteristics of low cost, safety and reliability, simple assembly and disassembly characters. The light warehouse pillar can be used alone and it can also be freely spliced into various permutations.

Storage racks roll forming machine is designed to make the up right pillars in batch fully automatically. Here is one of the drawing profiles of Light duty upright pillars for your reference:

light duty upright


upright drawing profile


For the Light Duty upright pillar roll forming machine parameters for your refernece:

Light Duty Warehouse Pillar


Main Roll Forming Machine:

1) Number of rolling stations: 16 rolling stations

2) Shaft diameter: 60mm

3) Shaft material: 45# steel after quenching.

4) Roller material: 45# steel after 62 to 65 degree quenching

5) Transmission method: chain

6) Motor Brand: Chinese famous brand MengNiu

7) Voltage: 380v, 50Hz, 3 phases or customize

8) Machine frame: Middle plate

9) Machine frame thickness: 20mm

10) Main power: 7.5kw

Hydraulic Shearing system:

1).Material: blade and mold material: Cr12 steel with quenched treated 60-62℃

2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

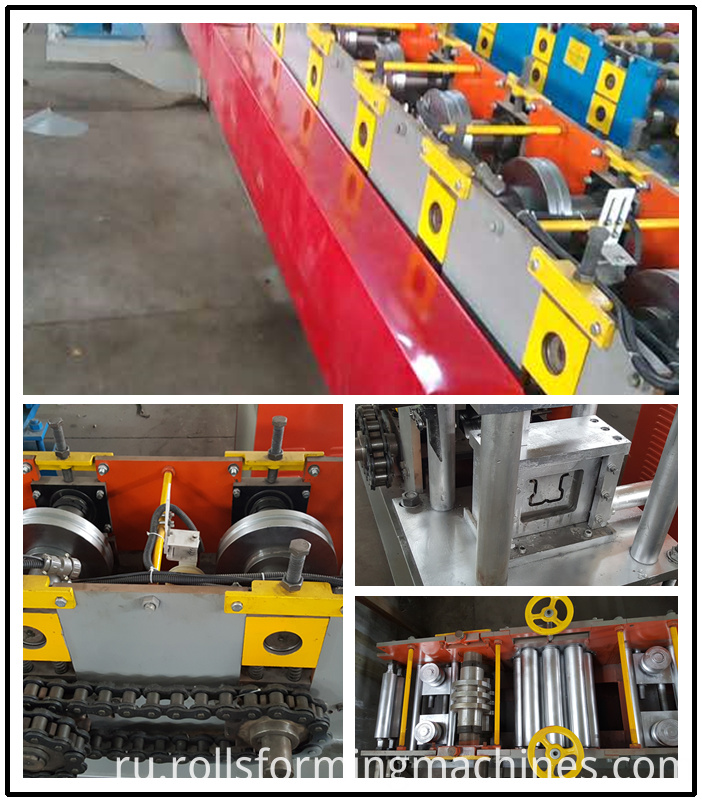

midddle plate pillar machine

Control system

1). Screen: Delta screen from Taiwan

2). PLC: Delta DVP14ES from Taiwan

3). Coder: ENC-1-1-1T-24 from South Korea

How to use of upright pillars of light duty:

upright pillar machine


Storage racks roll forming machine:
Our Storage Rack Roll Forming Machine has been sent to many countries. Before delivery, we will make seriously testing. After testing you can deliver the machine and the finished upright together by container. By this method, we can confirm that 100% the machine could work smoothly meanwhile the tested finished products will not be wasted.


upright loading pictures

Company customer show:

Our machines has been sold to more than 40 countries, hoping one day you can join us. With us, creating your own metal world.

Customer from all over the world


Looking for ideal Storage Racks Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Racks Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Racking Roll Forming Machine
