840 Roof Tile Roll Forming Machine
840 Roof Tile Roll Forming Machine
840 Roof Tile Roll Forming Machine
840 Roof Tile Roll Forming Machine
840 Roof Tile Roll Forming Machine

840 Roof Tile Roll Forming Machine

Цена за штуку: USD 10500 - 9200 / Set/Sets
Вид оплаты: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Количество минимального заказа: 1 Set/Sets
Срок поставки: 30 дней

Свяжитесь сейчас Добавить в корзину

Базовая информация

    Модель: ZT-004-070

Additional Info

    Подробности Упаковки: nude package

    производительность: 30 sets per month

    марка: zhongtuo

    транспорт: Ocean,Land

    Место происхождения: cangzhou

    Способность поставки: 30sets/month

    Сертификаты : CE ISO9001

Описание продукта

840 Roof Tile Roll Forming Machine


Item Name

Loading Time




FOB Tianjin


840 Roof Tile

Roll Forming Machine

30 working Days

20` Container

1 Set

9200 USD

Equipment and Qty.

Manual decoiler

1 set

Main roll forming machine

1 set

Electric controlling panel

1 set

Hydraulic station

1 set

Post cut

1 set

Product receiving table

1 set

840 Roof Tile Machine

Main features of each part:

Drawing of tile:



Production parameters

Processing material: GI and Aluminium

Material thickness: 0.3- 0.8 mm

Coil width:1000 mm

Forming speed: 8-12 m/min

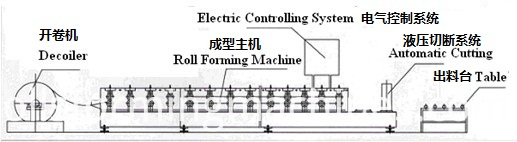

Working flow:

flow of the c z channel roll forming machine

Uncoiler System

manual decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Loading capacity:5 T

Uncoiling width:1000 mm

Inner diameter: 450-550 mm.

Entry Beach

entry beach

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat,

parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Main Roll Forming System

main roll forming machine

main roll forming

Size of the main part: about

7500 х 1450 х 1500

Weight of main part: 3. 5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 350 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 70 mm

Number of rollers : 13 rollers

Main power: 3 kw

Shearing Mechanism

cutter of 840 Roof Tile Machine

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Hydraulic Station

hydraulic station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job

Power: 3 kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1 sets of electromagnetism valves.

Electric Controlling System

electric controlling system


1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

If you need, we can change it other brand or little computer type for touching screen.


counter 3

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

Products receiving tables

output table 3

1. It adopts welded steel and supported roller to transmit the products.

2. 3 m/set with 2 sets


accessories 3

1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

Payment terms

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery:within 45 working days after receipt of deposit.


1. Two years guarantee, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary, one technician needed.

4. Training time: one week (contains the time of installation and adjustment)
