Roof Roll Forming Machine Manufacturer
Product description

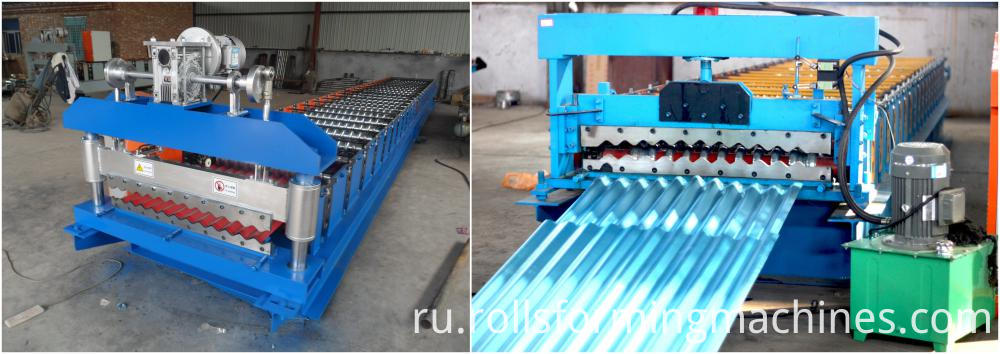

This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The miximum speed of Roofing Sheet Roll Forming Machine can be 45m/min,greatly improving the production efficiency.The finished roof sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.

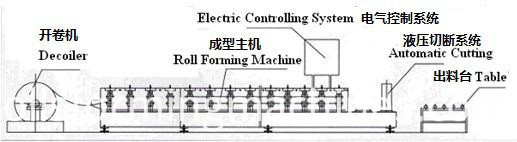

Working flow of Sheet Roll Forming Machine
Specification of Sheet Roll Forming Machine
Material Type:GI/PPGI/AL
Material width:1000/1200/1220/1250mm(customized)
Material Thickness:0.25-0.8mm
Sheet length: Any length
Length Tolerance:±2mm/6m
Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)
Control System:Mitsubishi/Siemens PLC& transducer(customized)
Total Power:About 5.5KW
Total Weight:About 4T(up to the final design)

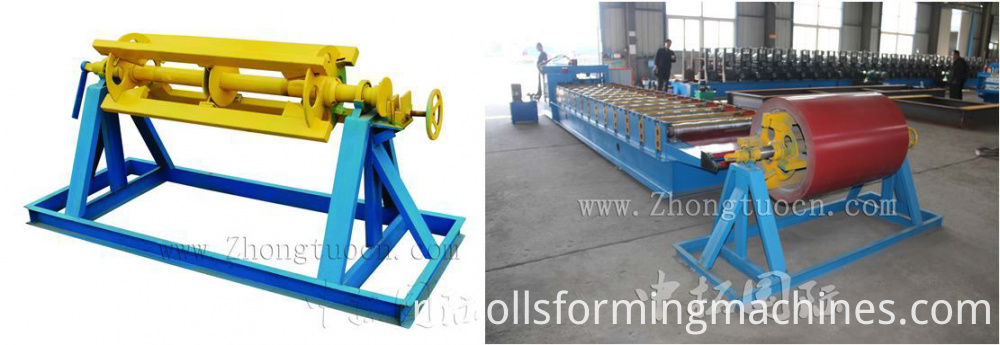

Un-coiler System of Roof Roll Forming Machine
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system
Loading-capacity:5T
Uncoiling-width:1000/1200/1250mm
Inner-diameter: 450-550mm
Entry Beach of Roofing Sheet Roll Forming Machine
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

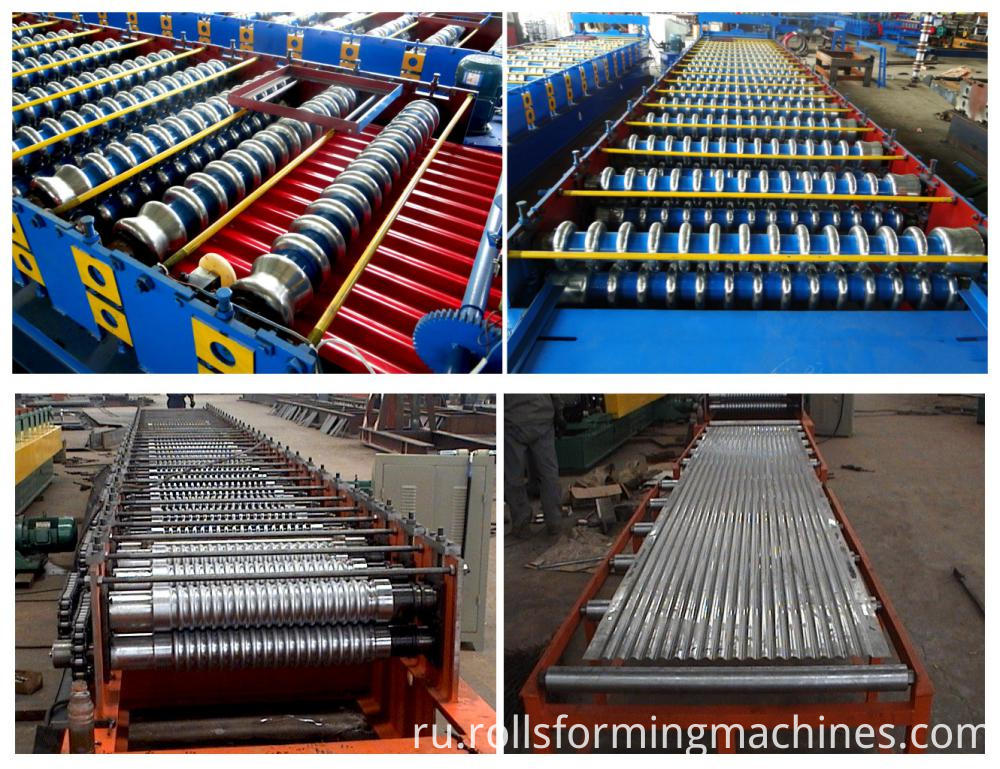

Main Roll forming machine of Roofing Sheet Roll Forming Machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:8650*1650*1500mm
Voltage:380V/50HZ3Phase
Roller fixer : middle plate
Material of shafts: 45#steel
Diameter of shafts: φ80mm
Number of rollers : 18 rollers
Shearing Mechanism of Sheet Roll Forming Machine
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Function: Automatic cutting controlled by PLC.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Products receiving tables of Sheet Roll Forming Machine
Looking for ideal Roofing Sheet Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roof Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Roofing Sheet Roll Forming Machine > Corrugated Roof Roll Forming Machine
