Galvanized Corrugated Panel
Roll Forming Machine
Production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

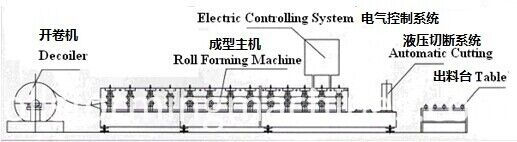

Components of production line

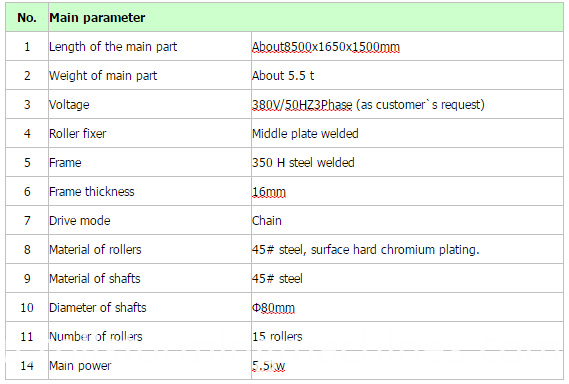

Production parameters
Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.3- 1.2mm
Material width:1220mm/1200/1000/1250
Forming speed: 8-25m/min
Drawing of tile
Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
| Loading capacity | Uncoiling width | Inner diameter |
| 5T | 1220mm | 450-550mm |
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

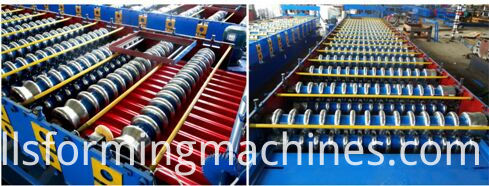

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Cutting device Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
(include cutting tools, hydraulic tank, cutter machine)
| Blade Material | Cutting system |
| Cr12 quenched | Full automatic |
Controlling device
1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with
stability, precision and lifetime.
2.Other electric element are Delta
3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
| Screen | PLC |
| Text screen displayer | Taida DVP14ES from Taiwan |
Hydraulic
(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )
| Orgin | Power |
| Advanced hydraulic system from Taiwan | 3kw |
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
| Remarks |
| Payment terms | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
| Delivery | within 45 working days after receipt of deposit. |
| Packing | Nude packing with 1*20 container |
Looking for ideal Forming Machine For Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Tile Roll Forming Machine for Sale are quality guaranteed. We are China Origin Factory of Metal Tile Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Roofing Sheet Roll Forming Machine > Corrugated Roof Roll Forming Machine
