light steel angle keel Roll Forming Machine

Brief Introduction

Light steel angle keel roll forming machine is one of the main cold roll forming machine. We are the professional manufacturer of V shape machine and have many experience. The whole production line is controlled by computer. The mill can be designed for different thickness , different material and L shape profiles.

Main elements of light steel angle keel roll forming machine

1.Decoiler

2.light steel angle keel roll forming machine main roll forming machine

3.punching maching(as customer's need)

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose )

5.PLC control

6. Ceiling Ceiling wall angle Light Guage Steel Making Machine Counter 1 set

7.hydraulic station

8.receiving table

Process flow

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Decoiler

• Usage: It is used to support the steel coil and uncoil it in a turntable way.
• Passive uncoil pulled by roll forming system
• Loading capacity: 1.5T
• Uncoiling width: 300mm
• Inner diameter: 450-550mm

Entry leveling

This part will level coil to make sure it is neat clean and straight.

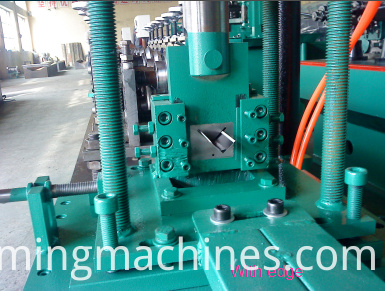

Roll forming machine

1. Size: 2900х800х1400mm
2. Weight : 3 tons
3. Voltage:380V/50HZ3Phase(as customer`s
   request)
4. Roller fixer : Guide column
5. Frame : middle plate welded
   Memorial arch frame type
6. Frame thickness:25mm
7. Drive mode: gear
8. Material of rollers: GCr12MoV
9. Material of shafts: 45# steel with
   tempering
10. Diameter of shafts: φ40mm
11. Number of rollers : 8 rollers
12. Main power: 3kw
13. Cycloidal planetary gear speed reducer)

Shearing system

1. Material of blades: Gcr12MoV quenched
2. Power supply : hydraulic power
3. Frame : Pillar style with rack & pinion system
4. Stroke switch : non-contact photoelectric switch
5. Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

PLC station

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Warranty:

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technicians

4. Training time: one week (contains the time of installation and adjustment)
