Z-Purlin Frame Forming Machinery
Z-Purlin Frame Forming Machinery:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Suitable Material Type:GI/PPGI/AL
Thickness:2.0-3.0mm
Length Tolerance:±2mm/6m
Working Speed:25 m/min Standard machine
Total Power:6KW
Total Weight: About 6.2T Up to final design
Deatiled information of Z-Purlin Frame Forming Machinery
Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod
ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

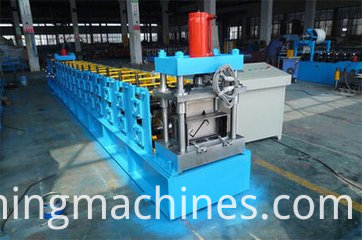

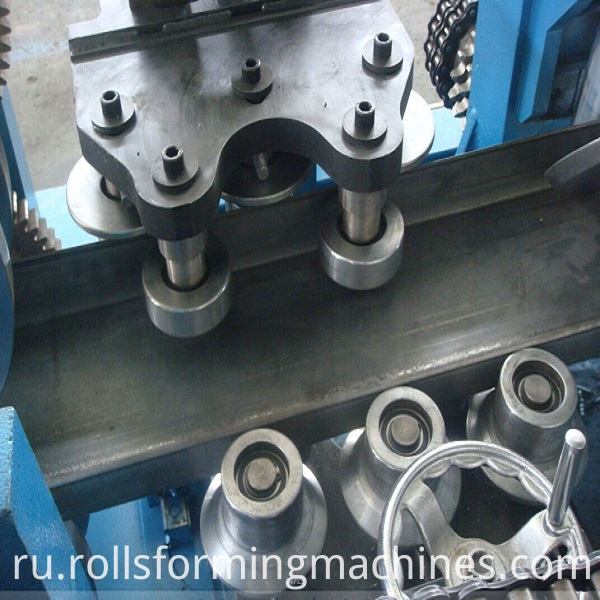

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Length of the main part:6800*800*1200mm
Weight of main part:About 6.2 t
Voltage:380V/50HZ3Phase (as customer`s request)
Roller fixer:Guide column
Frame: Middle plate welded Memorial arch frame type
Frame thickness:25mm
Drive mode:Gear or chain
Material of rollers:45# steel with tempering
Material of shafts:45# steel with tempering
Diameter of shafts:φ80mm
Number of rollers:12rollers
Main power:11kw (Cycloidal planetary gear speed reducer)
Cutting device
Advanced hydraulic drive flying saw cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor. Flying saw punching Z steel equipment is a kind of Z steel machine cut, it adapt after cut. This cut off the way do not need to change model,You can added the punch in the flying saw device at the same time to achieve the effect of flying saw punching if you need.
Punching device
Features: punching is a part of the the flying saw cutting, is controlled by hydraulic station, mainly punches holes at Z steel , Whether puching is according to customer's need, easy to control use conveniently and long life.
Controlling device
Hydraulic
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
Our Services
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
