Metal storage rack /column/ upright pillar Roll Forming Machine VIDEO
The metal storage rack system is mainly composed by the column, steel plate composition. Column with roll forming process, with the oblique rod, horizontal rod connected to form a column. According to the needs of the side beam with a layer of laminates or beams used, the board can be adjusted for every 50 mm pitch up and down any height, the shelf for the modular structure, high stability, easy installation and disassembly. Unit shelf each load between 200kg-800kg, the total load is generally not more than 5000kg. Unit shelf span is usually not more than 2.6m, the depth of not more than 1.2m, the height is generally within 5m. Applicable to carrying small and medium goods. Widely used in shopping malls, supermarkets, corporate warehouses and institutions and other industries .

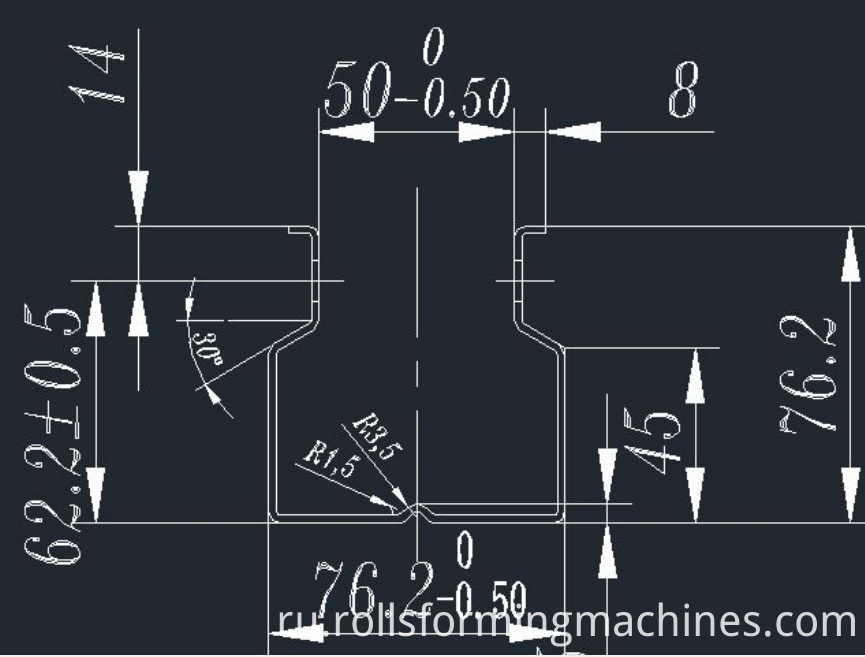

Metal storage rack machine could be manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing.Market shelf pillar roll forming machine can help you do the production in batch. Here are some pictures for your reference:
For the metal storage rack machine design plan, we use the following elements and parameters . MACHINE COMPONENTS: 1. Hydraulic decoiler 3 ton 1 set 2. Punching system 64 ton 1 set 3. Coil feeder 1 set 4. Leveling Machine 1 set 5. Roll Forming 1 set 6. Hydraulic Cutting 1 set 7. PLC Control System 1 set 8. Hydraulic Station 1 set 9 .Run-out Table-(Un-powered) set For some key elemetns, here are some introductions:

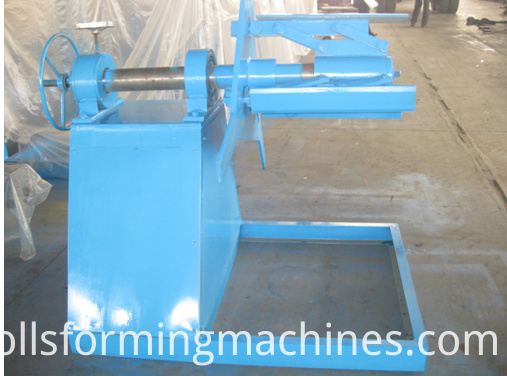

1. Hydraulic decoiler or Manual Decoiler 3 Ton passive de-coiler with brake device or you can choose to use the manual version to save the cost of machine. Outside diameter of coil: 550mm Inside diameter of the coil: 450mm
2. Leveling system and coil feede r metal storage rack machine: After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.
3. Main forming machine of column forming machine : 1) Forming steps: 18 steps 2) Outer diameter: 70mm 3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm 4) Roller information: A. Raw material: GCr12MoV B. Quenched degree: 56-58°C 5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface 6) Main motor power: 18.5kw, Reducer ratio: 1:14, Reducer Type: Hardened reducer

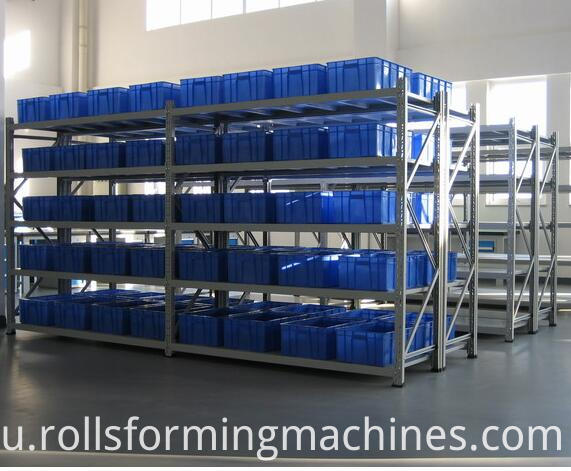

Now we can check where the Store shelf upright pillar making machine finished product is used for:
For this Market shelf pillar roll forming machine, if you want to know more videos and testing reports, please contact me at any time.
