High Grade Roofing Panel Sheet Making Machine Roll Forming Machine
Usage of finished product:
The roof panel or sheet is widely used in industrial and civil buildings, warehouse, special construction, large span steel structure house as the roof, walls or interior and exterior decoration.
Drawings of tile:
Component of machine
| Quick check details: |
| 1 | Length of the main part | About 9500 х 1650 х 1500 mm |
| 2 | Weight of main part | About 6.8 Ton |
| 3 | Voltage | 380 V/50 HZ 3 Phase (as customer`s request) |
| 4 | Roller fixer | Pillar type |
| 5 | Frame | Guide pillar and the thickness is 50 mm |
| 6 | Frame thickness | 25 mm |
| 7 | Drive mode | Gear |
| 8 | Material of rollers | 45# steel, surface hard chromium plating. |
| 9 | Material of shafts | 45# steel |
| 10 | Diameter of shafts | Φ 85 mm Solid shafts |
| 11 | Number of rollers | 16 rollers |
| 14 | Main power | 11 kw(Siemens motor ) |
| 15 | Text screen displayer | Japan made |
| 17 | Forming speed | speed 8-22 m/min |
| 18 | PLC Control system | Japan Panasonic P LC |
| 19 | Hydraulic power | 5.5 KW |
| 20 | Gear box | China famous brand |
| 21 | Chain | 1.25 |
| 22 | Cutter blade | Material: Cr 12 Move quenched Give one free as spare part |

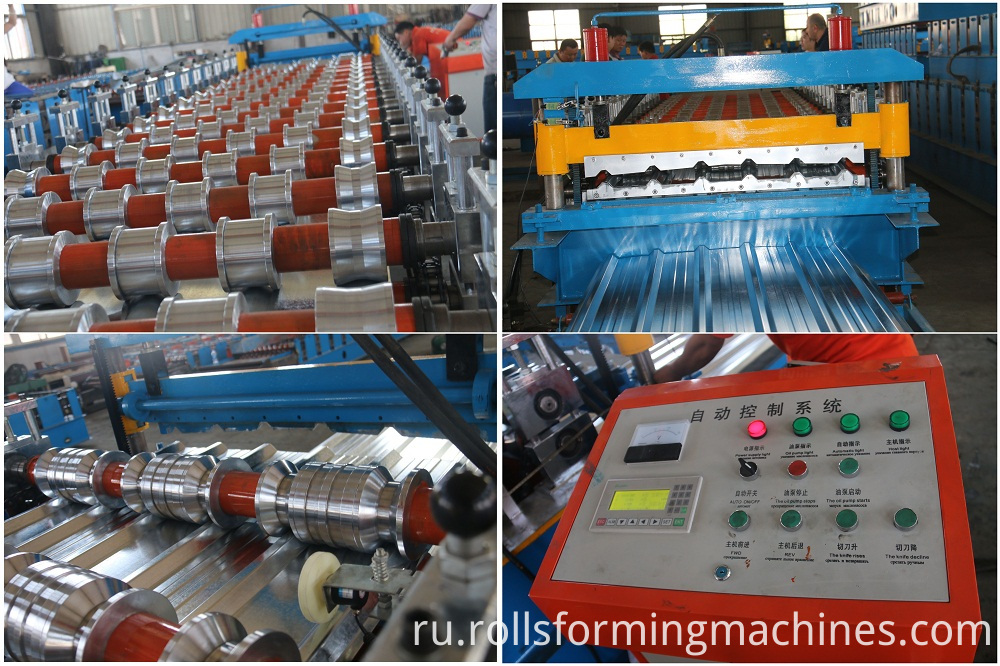

Pictures of each part:
Features of our factory:
As a professional manufacturer,we can make Metal roof tile making machine by customer`s demand, with a profile drawing and thickness,
we can do design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine,

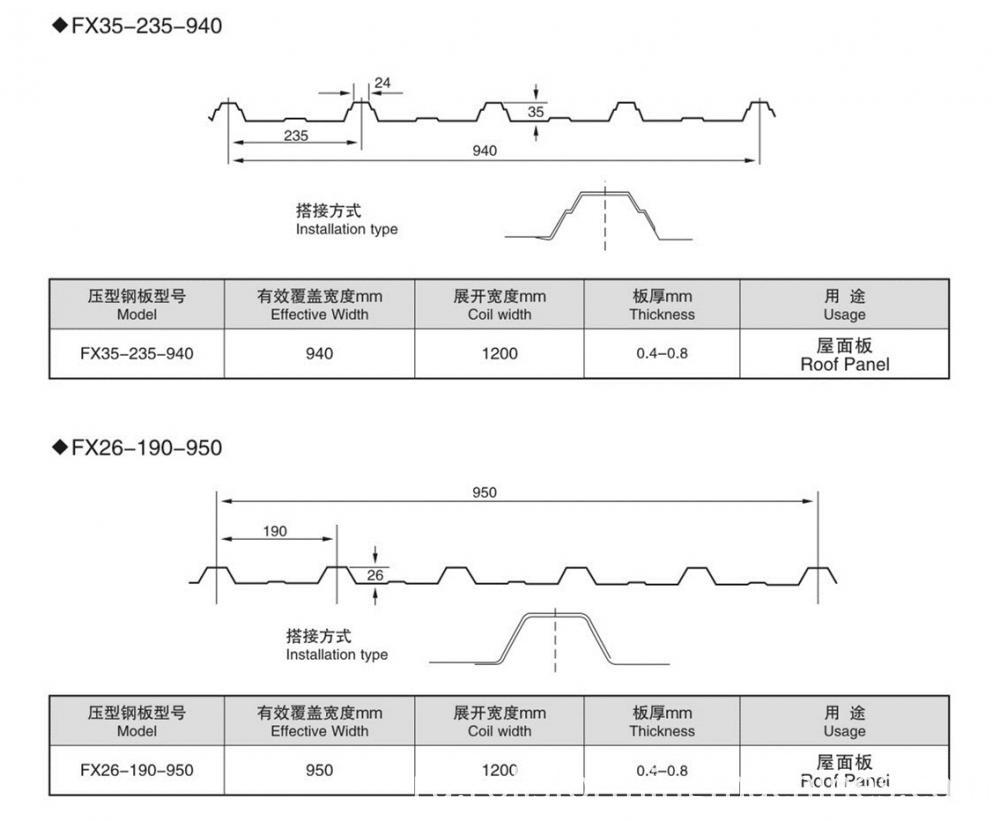

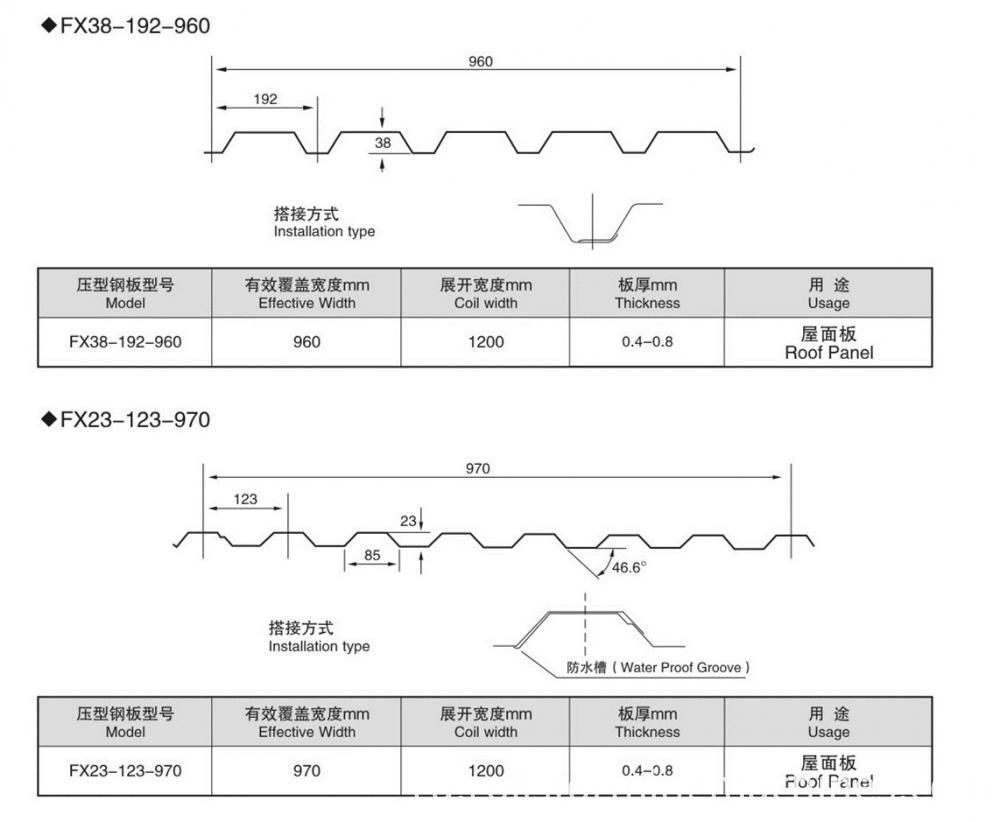

corrugated sheet mnaking machine, glazed Tile Making Machine, Double Layer Roll Forming Machine and so on.Here is some profile drawings for you reference

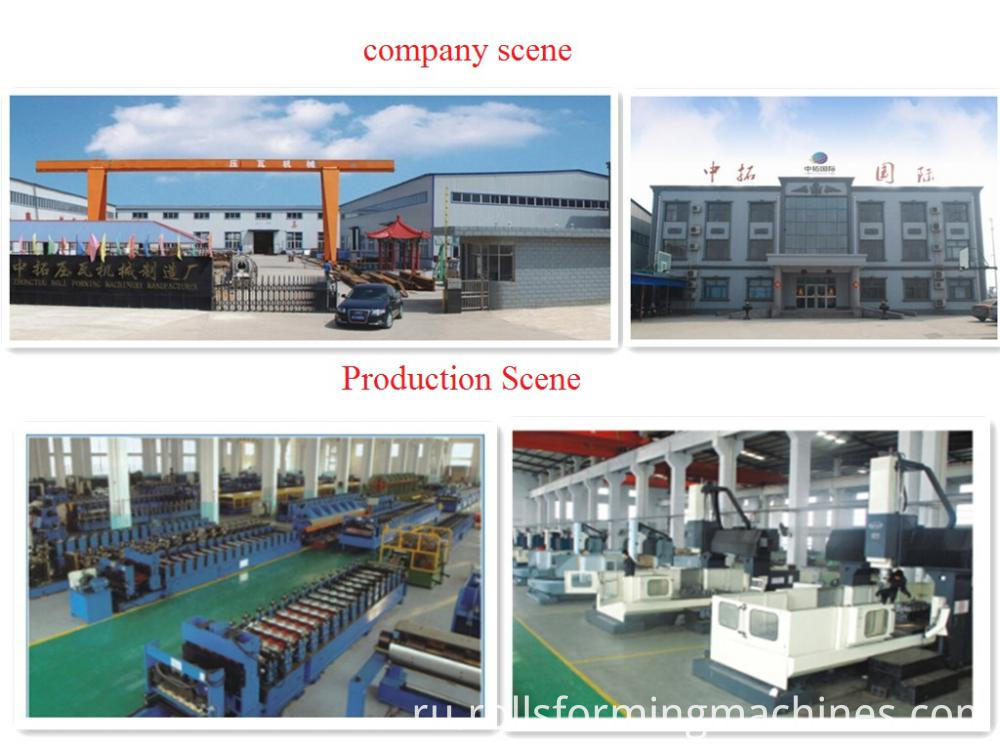

Pictures of our factory:
