rolling metal embossing machine

rolling metal Embossing Machine

rolling metal embossing machine are mainly for producing embossed aluminum and steel roll. metal embossing machine is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line

The main parts of this rolling metal embossing machine:

Uncoiler, embossed host, recoiler, electrical control station

Here is our pic for your reference:

Standard parameters of this line

model	ZT-S1000	ZT-S1400	ZT-S1600	ZT-S1900
Overall size(mm)	2900*1200*1500	3300*1200*1500	3500*1200*1500	3800*1200*1500
Roller size	φ350*1000mm	φ380*1400mm	φ400*1600mm	φ450*1900mm
Material of roller	42CrMo	42CrMo	42CrMo	42CrMo
Roller hardness	HRC55-58	HRC55-58	HRC55-58	HRC55-58
Way of embossing	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same
Embossing regulation	By screw	By screw	By screw	By screw
Motor power(KW)	7.5	11	15	15
Line speed	0-18m/min	0-30m/min	0-40m/min	0-45m/min

Detailed parameters of this metal embossing machine line

1. Roller specifications: DIA450~500mm, width: 1000~1800mm.

2. Take the roll surface hard chromium plating

3. Suitable for pressing plate: 2-6 mm

4. Frame steel plate welded structure, polished, tempering, machining, solid wall plate Q235 90 mm thick

5. Pattern processed by laser engraving.

6. The pattern making: according to the buyer to provide the sample pattern

7. Pressure mode: hydraulic 50~100T.

8. Working speed: 1~20m/min, speed changed by frequency converter .

9. Voltage 380V/50Hz/3PH

10. Safety shield shell

11. Generous beauty of appearance

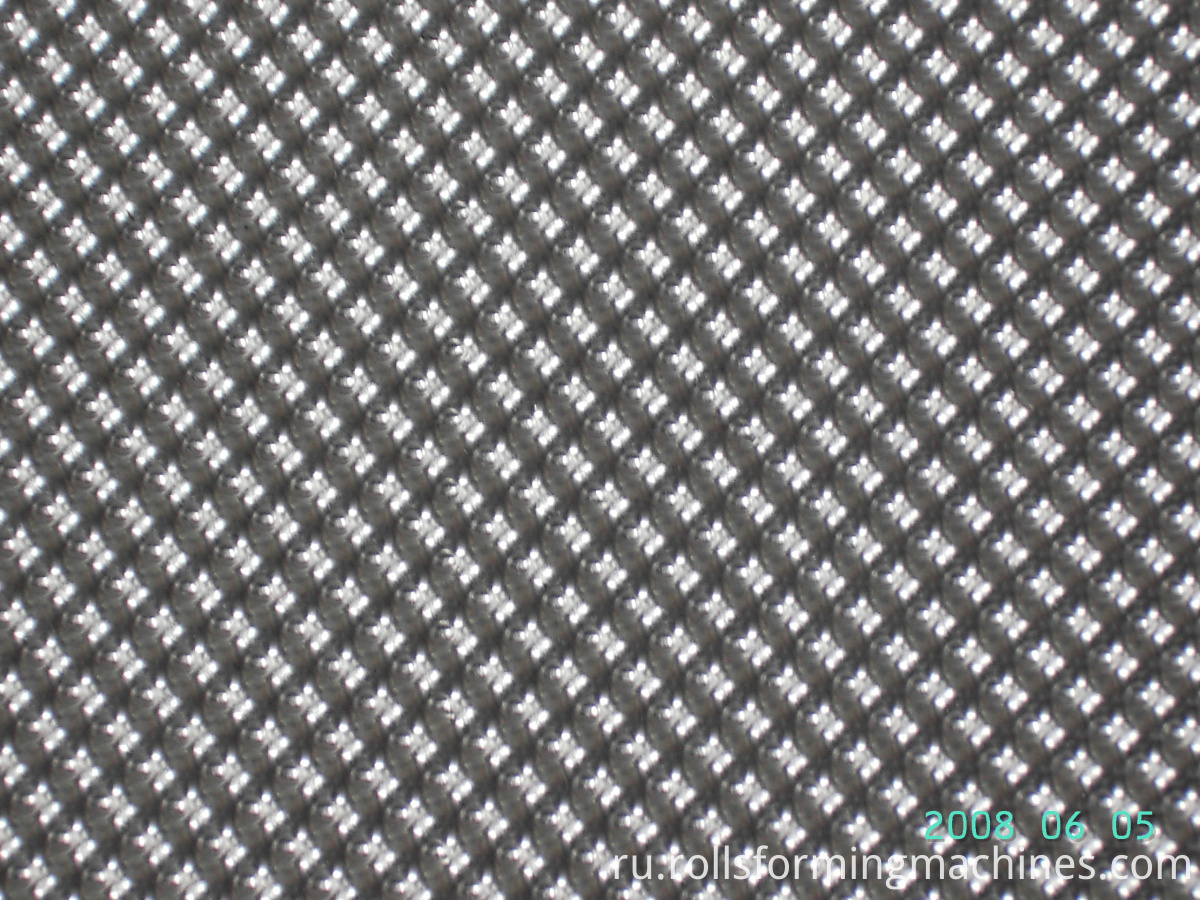

Here are some pics of embossing pattern for your reference:
